8. LUPMIS Tools > 8.6 Revenue Tools > 8.6.2 Entry of revenue data
8.6.2.7a Entry of Exemption
Level of expertise required for this Chapter: Expert; specifically for LUPMIS @ TCPD
There are 3 different ways to enter tax exemption:

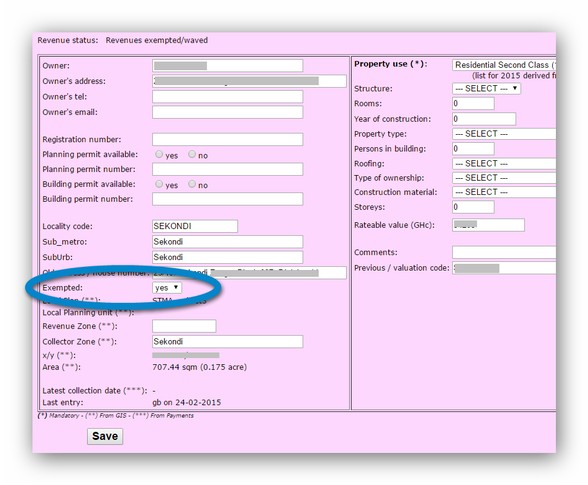

A) Individually for any property / business:
B) Through check boxes on listing of properties / business:

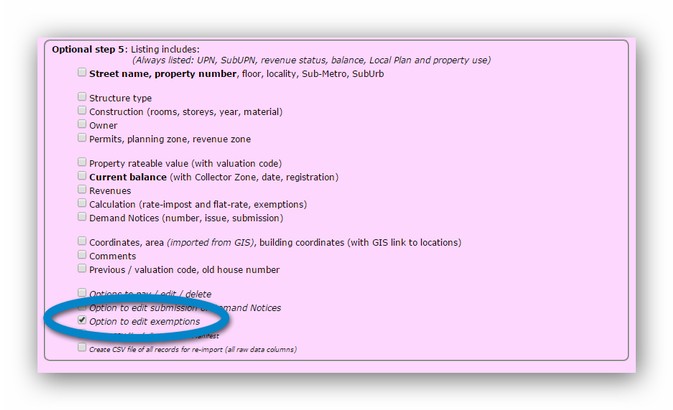

Revenue > Property (or Business) > List / Map > Select > Select filter > Continue > Check: Option to edit exemptions > List >

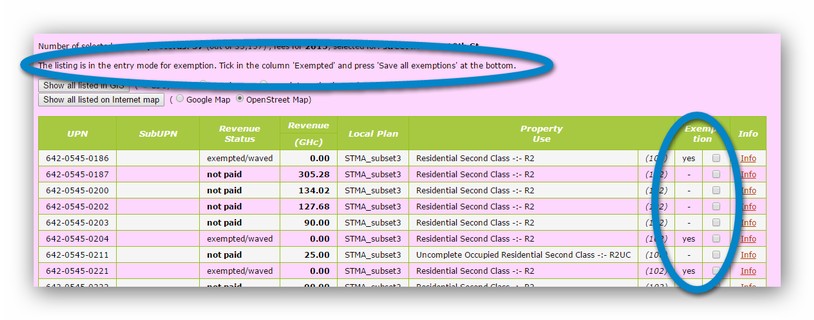

On the right side of the listing, there are check boxes for exemption. After checking, press the button 'Save all exemptions' at the bottom of this listing:
C) Through import of CSV file in a specific column:

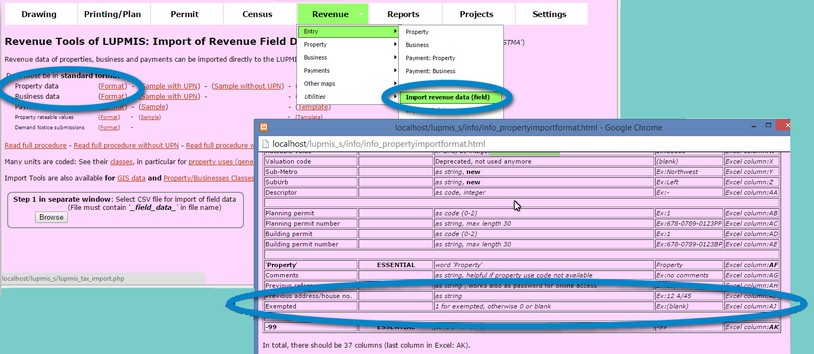

At the standard import of field data of properties / business from a CSV Excel file, there is a specific column for tax exemption. Enter a 1 if exempted.
